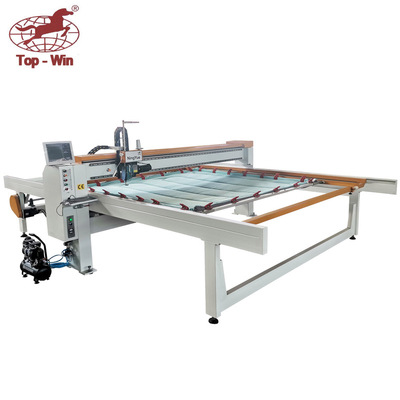

high precision Economic and practical servo motor full moved quilting machine 280 patterns
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Applicable Industries: | Manufacturing Plant, Home Use | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Condition: | New |
| Place Of Origin: | Jiangsu, China | Brand Name: | NINGYUE |
| Max Sewing Speed: | 2500SPM Stitch 2-7mm | Max Sewing Thickness: | 1200g/m2 MAX |
| Number Of Head: | Single Head | Moving Style: | Head Moved |
| Voltage: | 110,220v,380v,450v | Power: | 1.5kw, 220v,50hz,1.5kw |
| Dimension(L*W*H): | 4.8x3.5x1.4m | Weight: | 2000kg |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support |
| Quilting Size: | 2.6x2.8m | Needle Drop Size: | 2.4x2.6m |
| Sewing Machine: | Single-line Style,double Line Lock Style,big Rotary,big Rotary Shuttle | Sewing Thick: | 1500g/m2 MAX |
| Sewing Speed: | 2000 Spm Stitch 2-7mm | Needle: | Singer MR5 18-23# |
| Dimensions: | 4.8x3.5x1.4m | After Warranty Service: | Video Technical Support, Online Support |
| Local Service Location: | None | Certification: | ISO9001:2008 CE |
Product Description
Characteristic:
1): All motors use servo motor(X,Y direction,sewing head motors),high speed,low noise,long life.
2): Automatic sewing head lifting.
3): Automatic oil adding.
4): Automatic thread trimming.
5): Baking painting.
NYF-2628S is new style in 2020,high quality.
NYF series is single needle quilting machine,widely used on hometextile industry area,like quilts,pillows,curtains,tablecloths,glove,bedding,mattress etc.
| TYPE | NYF-2628S |
| Quilting size | 2.6x2.8m MAX |
| Needle drop size | 2.4x2.6m MAX |
| Sewing-Machine | Single line style,double line lock style,big rotary,big rotry shttle |
| Sewing thick | 1500g/m2 (MAX) |
| Sewing Speed | 2500 SPM Stitch 2-7mm |
| Needle | SINGLE MR5 18-22# |
| Dimensions | 4.8x3.5x1.4m |
| Power | 220V,50HZ,1.5KW |
| Weight | 1700kg |
for example: if you choose NYF2628, the max quilting size is 2.6m width and 2.8m length,so you can quilt 2.6x2.8m MAX,and any size under this size like 1.0x1.2m,2.3x2.5m or 0.8x0.6m etc.
Delivery time:
we have all raw material or machine in stock,basically can ship out within 7 days.
Packing:
Tool box:
Our contact below:
Hot To Install
when you installing the machine, there are one box,there are all tools,tape sensors etc,you even no need to use your owen parts/accessories,then can install the machine.for NYA series,need about 4 hours on installing
and my side will send you install manual,softwear manual in english.
During this period,if you still have questions, you can video chat with us by whatsapp/skype/wechat/QQ. and send us pictures/video of the issues you meet when installing. we will resolve all of them on time.
After sale service
we don't just sale machine also have good aftersale service.
All of our machines will be warranted one year,during this period,all parts broken(if quality problme),can exchange new one freely.
our team will have technical support of the whole life of the machine.any qestions/problem,you can contact us.we will work with you freely.
Certifications
CE certificate No: 3N190424.SNSUO02
