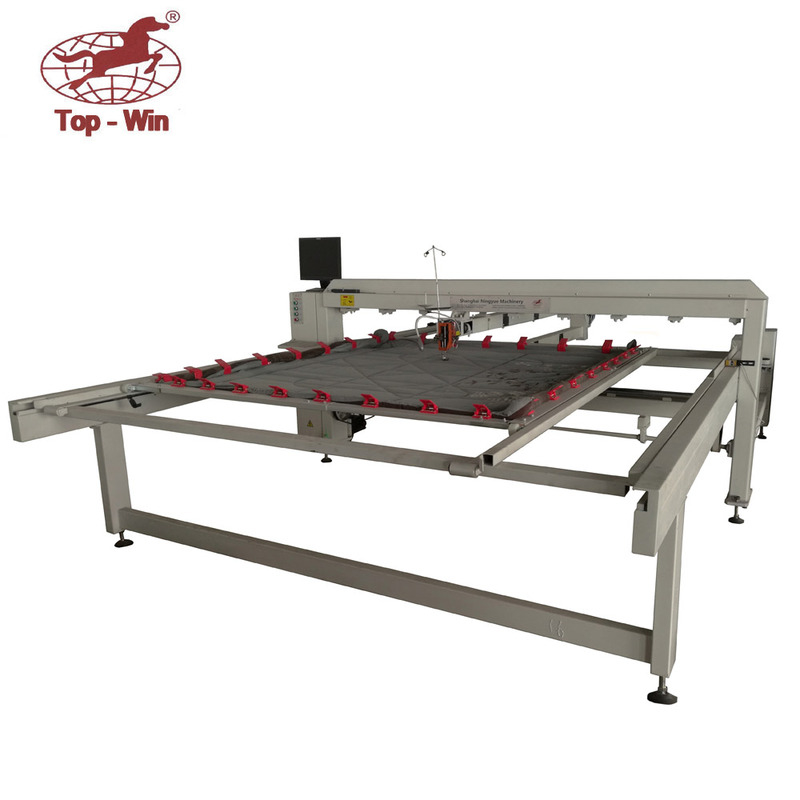

Computerized Quilting Machine , Quilting Machinery Conterpane Mattress , Duvet Making Machine

NYL series is single needle quilting machine,widely used on hometextile industry area,like quilts,pillows,curtains,tablecloths,glove,bedding,mattress etc.

TYPE	NYL-2628	NYL-2832	NYL-3032	NYL-3535
Quilting size	2.6X2.8m MAX	2.8X3.2m MAX	3.0X3.2m MAX	3.5X3.5m MAX
Needle drop size	2.4X2.6m MAX	2.6X3.0m MAX	2.8X3.0m MAX	3.3X3.3m MAX
Sewing-Machine	Single line style,double line lock style,big rotary,big rotry shttle
Sewing thick	1200g/m2 (MAX)
Sewing Speed	2000 SPM Stitch 2-7mm
Needle	SINGLE MR5 18-22#
Dimensions	5X4X1.4m	5.4X4.2X1.4m	5.5X4.4X1.4m	5.8X5X1.4m
Power	220V,50HZ,1.5KW (OR per your requirements)
Weight	1700kg	1800kg	1900kg	2000kg

for example: if you choose NYL2628, the max quilting size is 2.6m width and 2.8m length,so you can quilt 2.5x2.8m MAX,and any size under this size like 1.0x1.2m,2.3x2.5m or 0.8x0.6m etc.

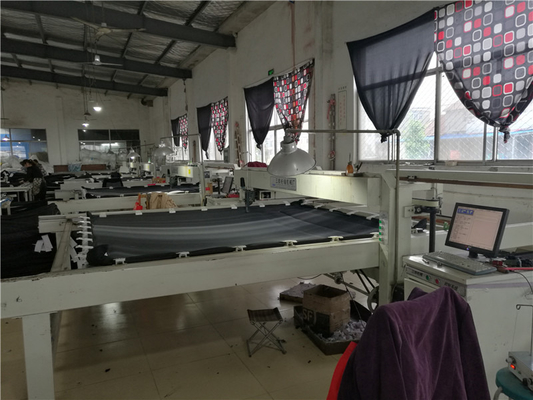

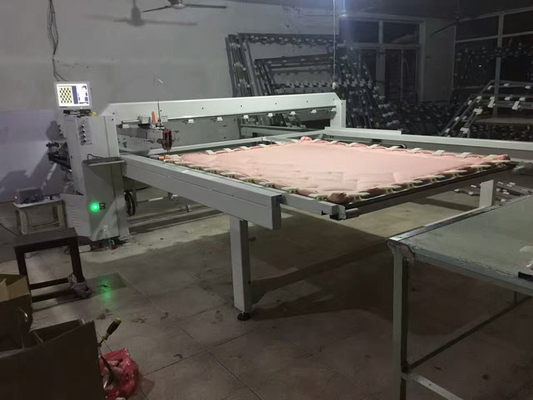

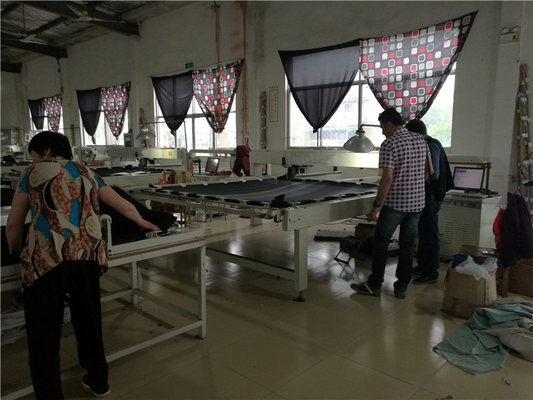

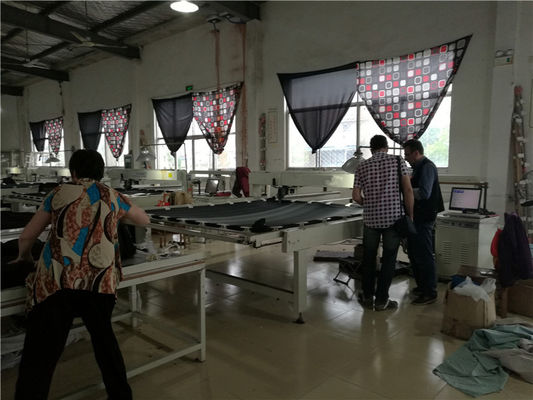

below are some pictures of products our machine made:

Basically all raw material are in stock,after receive of your order,we will ship out immediately ,for different machines,please contact us for delivery time.

machines are packed in wooden box,metal box or container taken for big order.Normally,small machines packed in wooden boxes, big machines are packed in metal boxes,big orders or very big machines are tooken by container directly.

please contact us before ordering.

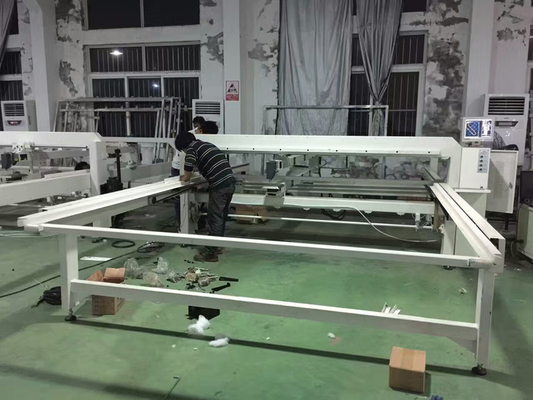

when you installing the machine, there are one box,there are all tools,tape sensors etc,you even no need to use your owen parts/accessories,then can install the machine.for NYL series,need about ONE day on installing

and my side will send you install manual,softwear manual in english.

During this period,if you still have questions, you can video chat with us by whatsapp/skype/wechat/QQ. and send us pictures/video of the issues you meet when installing. we will resolve all of them on time.

we don't just sale machine also have good aftersale service.

All of our machines will be warranted one year,during this period,all parts broken(if quality problme),can exchange new one freely.

our team will have technical support of the whole life of the machine.any qestions/problem,you can contact us.we will work with you freely.

CE certificate No: 3N190424.SNSUO02
