hot sale Pocket Welt Sewing Machine Drapery Pinch Pleat high quality
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Applicable Industries: | Manufacturing Plant, Home Use | Condition: | New |
|---|---|---|---|
| Place Of Origin: | Jiangsu, China | Type: | Industrial Sewing Machine |
| Brand Name: | Topwin | Stitch Formation: | Lock Stitch |
| Mechanical Configuration: | Flat-Bed | Max. Sewing Thickness: | 13mm |
| Stitch Length: | 0.1-12.7mm | Power: | 750w, 220v |
| Overall Dimensions: | 1200*900*1000mm | Feed Mechanism: | Frame |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support | Max Sewing Area: | 20x10cm~47x20cm |
| Product Name: | Industrial Lockstitch Toy Sewing Machine | Keywords: | Industry Sewing Machine |
| Item: | Computer Sewing Machine | Name: | Drapery Pinch Pleat Sewing Machine |
| After Warranty Service: | Video Technical Support, Online Support | Local Service Location: | None |
| Showroom Location: | None | Marketing Type: | Ordinary Product |
| Certification: | ISO9001 |
Product Description
| Model: | NY-2010 | NY-2516 | NY-3020 | NY-3520 | NY-4720 |
| G.W | 120kg | 130kg | 145kg | 155kg | 170kg |
| Power | AC 220V | ||||
| Size | 1200*900*1000mm | ||||
| Stitching area(MAX) | 200x100mm | 250x160mm | 300x200mm | 350x200mm | 470x200mm |
| Speed scope | 200-2000rpm for 10 sections | ||||
| Stitch length | 0.1-12.7mm | ||||
| Max Speed | 2500rpm | ||||
| Needle | DP×17 18# | ||||
| Shuttle | Double rotating shuttle | ||||
| Presser foot type | Pneumatic | ||||
| MemorySpace | RAM/USB/SD | ||||
| Max.number of stitches | 8,000per pattern | ||||
| Propportional sacle function | X.Y 10-200%(min0.1%) | ||||
| Outer pressure foot lifting range | 32mm | ||||
| Inside pressure foot lifting range | 20mm | ||||
| Inside pressure foot working range | 4-10m | ||||
| Motor | Electromagnetic clutch motor /Diect drive servo motor 750 W | ||||
| Model: | NY-4030 | NY-5040 | NY-6040 |
| G.W | 220kg | 230kg | 240kg |
| Power | AC 220V | ||
| Size | 1300*1500*1200mm | ||
| Stitching area(MAX) | 400x300mm | 500x400mm | 600x400mm |
| Speed scope | 200-2000rpm for 10 sections | ||
| Stitch length | 0.1-12.7mm | ||
| Max Speed | 2500rpm | ||
| Needle | DP×17 18# | ||
| Shuttle | Double rotating shuttle | ||
| Presser foot type | Pneumatic | ||
| MemorySpace | RAM/USB/SD | ||
| Max.number of stitches | 8,000per pattern | ||
| Propportional sacle function | X.Y 10-200%(min0.1%) | ||
| Outer pressure foot lifting range | 32mm | ||
| Inside pressure foot lifting range | 20mm | ||
| Inside pressure foot working range | 4-10m | ||
| Motor | Electromagnetic clutch motor /Diect drive servo motor 750 W | ||
Computer pattern sewing machine is widely use on bag/shoes/tape/label/cap/leather/garments sewing area.
Language:
chinese,english,Vietnamese,Korean
Delivery time:
we have all raw material or machine in stock,basically can ship out within 7 days.
Packing:
paper box packing or wooden box packing

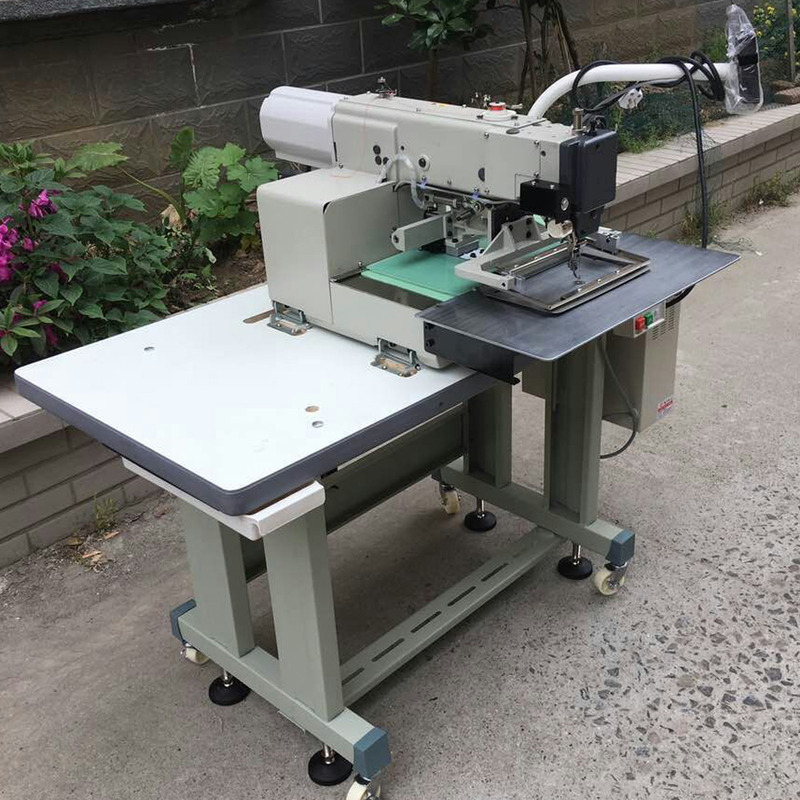

we also can customize your frame (model) for special sewing requirements,below is for caps:
Hot To Install
when you installing the machine, there are one box,there are all tools,tape sensors etc,you even no need to use your owen parts/accessories,then can install the machine.for NYA series,need about 4 hours on installing
and my side will send you install manual,softwear manual in english.
During this period,if you still have questions, you can video chat with us by whatsapp/skype/wechat/QQ. and send us pictures/video of the issues you meet when installing. we will resolve all of them on time.
After sale service
we don't just sale machine also have good aftersale service.
All of our machines will be warranted one year,during this period,all parts broken(if quality problme),can exchange new one freely.
our team will have technical support of the whole life of the machine.any qestions/problem,you can contact us.we will work with you freely.
Certifications

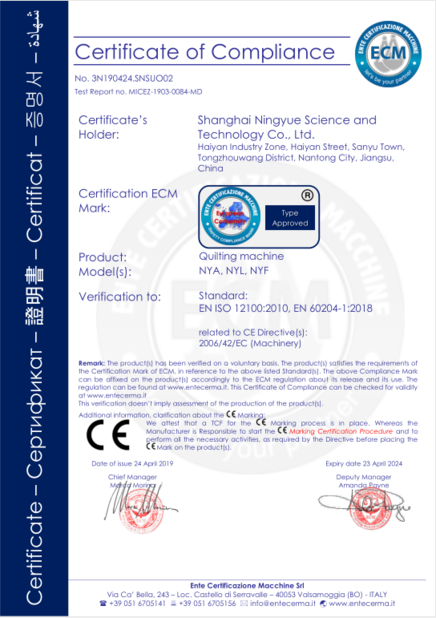

CE certificate No: 3N190424.SNSUO02
